A blank display is the absence of a reading rather than a reading. Nothing is being reported, so the fault lies between the mains and the panel itself, not in anything the control has measured.
- What the control is watching
- Nothing, and that is the point. A dark panel has stopped taking part, so the first job is deciding whether the machine behind it still works.
- What makes it register
- Loss of supply at the outlet or the breaker, or a break in the link between the control panel assembly and the board it reports to.
- Can you keep using it
- If the cabinet is still cold and the interior lights work, yes for a short while. If nothing at all is running, the food has hours and the clock is the urgent part.
What a dark panel needs settling first is whether the machine behind it has stopped or merely stopped talking. Open the door in a quiet kitchen, listen for the compressor, put a hand on a shelf. A cold cabinet with a dead display can wait; a silent warm one is a job for today.

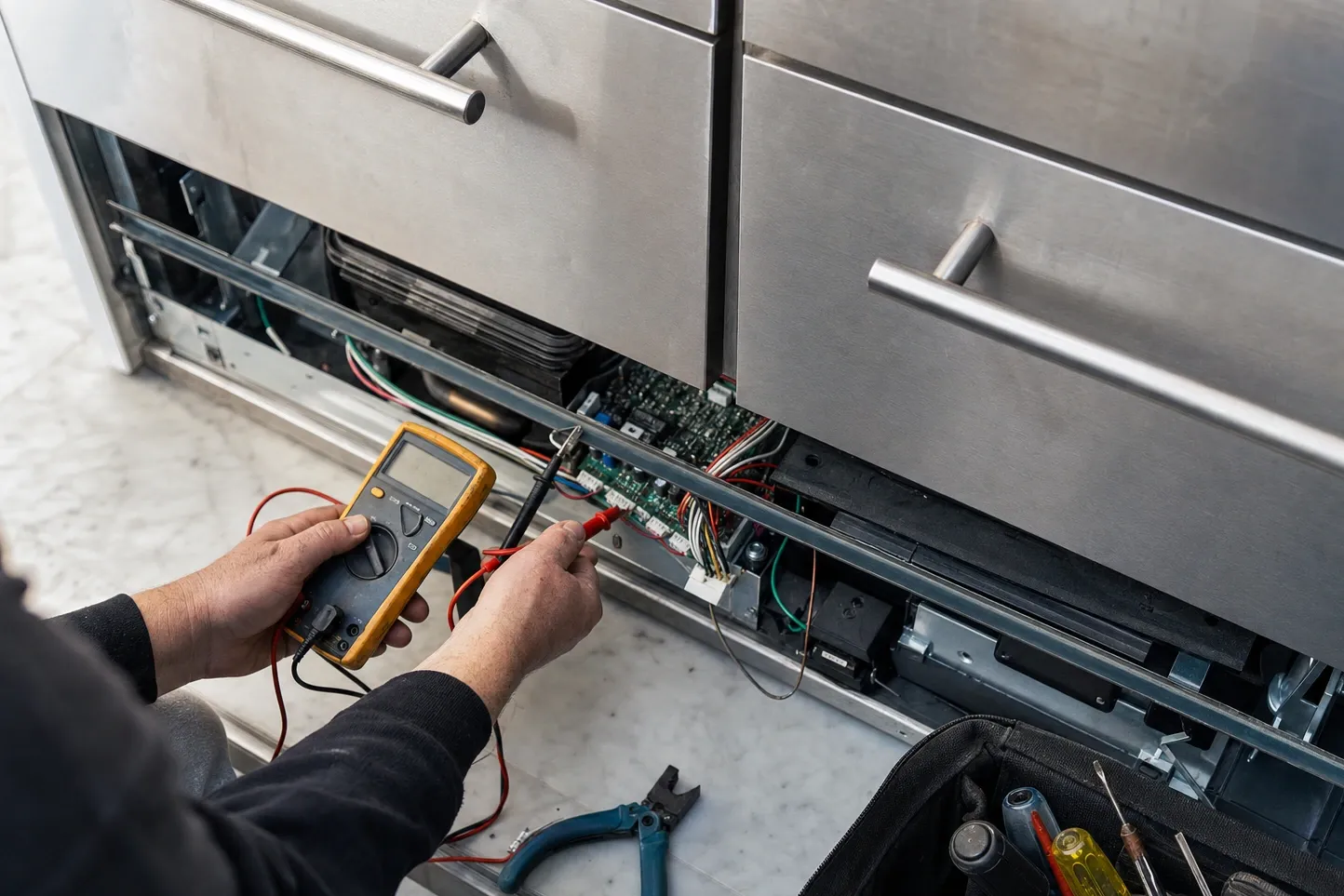

Then the breaker, which on an older board is not always labelled for the built-in. Past the plug and the breaker the checks stop being an owner’s: the next step is a continuity test with the panel assembly off the door.
Whatever the control recorded while the display was dark waits in memory, to be read out when the panel revives.
What we usually find
-
A dark panel on a cabinet that is still cold, with the interior lights coming on as the door opens
The ribbon cable between the panel assembly and the board, unseated or broken. Cooling is run by the board, so it carries on while the display it feeds goes dark. Reseating costs nothing; a failed cable takes the panel assembly with it, which is where the band comes from.
Electronic control board $390–$970
-
Nothing at all: no display, no interior light, no sound from the machine compartment
Supply, more often than anything inside the cabinet. Sub-Zero's first instruction here is the plug and the house breaker, and it is worth two minutes before anyone is called out.
Quoted after the diagnosis
-
A panel that lights but ignores every key pressed on it
The membrane switch behind the keys. The manufacturer's test walks every pin combination at the cable housing, and one failure condemns the whole panel assembly.
Electronic control board $390–$970
Which of these it is gets settled at the visit, before a part is ordered — Sub-Zero Repair Pro Los Angeles, (310) 844-1973.
Follow-ups
- Could a blank display mean the refrigerant has gone?
- No. A dark panel is an electrical question and a sealed system is a mechanical one, and the manuals treat them as separate problems. A cabinet that has lost its charge keeps its display lit while the temperatures climb. That is the reassuring part of a blank screen. Sub-Zero Repair Pro Los Angeles, (310) 844-1973.
